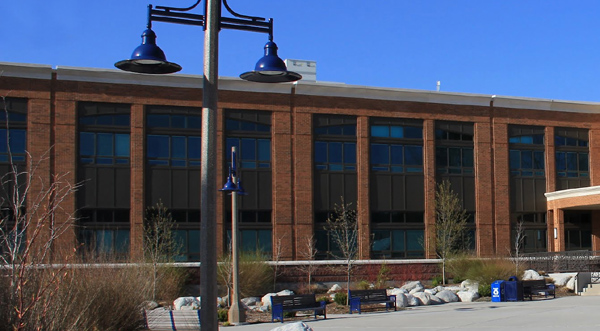

Marlin offers a full line of thermally efficient, heavy commercial window systems by using a rigid polyurethane

"thermal barrier" as an integral part of the window extrusions. These high performance windows will fulfill both

your architectural and mechanical design requirements. Each Marlin heavy commercial window is custom

factory-fabricated using heavy duty Bronze Craft hardware and positive sealing weatherstripping to ensure

long lasting superior performance. A complete line of accessory extrusions are available to meet various installation requirements.

Specifications

GENERAL

Projected and casement, fixed or pivot windows shall be Marlin series #7505 as manufactured by Marlin windows, and conform to AAMA/NWWDA -101-I.S.2-97 AW80. Series #7505 shall have a condensation factor of 56.

MATERIALS

All frame and sash members shall be aluminum extrusions of 6063-T5 alloy & temper with a minimum wall thickness of .094". Frame and sash members shall have a rigid polyurethane "thermal-barrier" as an integral part of the extrusion which eliminates all direct contact between interior and exterior aluminum sections. Glazing stops to be extruded aluminum with a minimum wall thickness of .050".

FINISH

Standard architectural Class II anodic color conforming to Aluminum Association AA-M12-C22-A34 for dark bronze or AA-M12-C22-A31 for clear anodize. (Architectural Class I anodic finishes and organic coatings available).

CONSTRUCTION

Frame members shall be 2 1/4" or 3 3/8" depth. Frame and vent corners shall be fabricated to form tight mitered joints. All intermediate frame members shall be coped to form tight butt joints where joined to perimeter members. All joinery fastened securely with stainless steel self-tapping screws and sealed to prevent moisture and air infiltration. Extruded aluminum glass stops shall be fabricated to form tight butt-joints.  Maximum vent size 66" x 36".

PROJECTED HARDWARE

Projected shall be balanced with two heavy duty four bar friction hinges. Hinges shall be of stainless steel, and include a positive stop and an adjustable friction shoe. Locking hardware shall consist of cam handle locks and surface strikes. Handle, base & strike housing shall be cast white bronze with burnished finish. Roto operators and underscreen bar operators are available.

CASEMENT HARDWARE

Casement windows shall be supported by exposed hinges manufactured from cast bronze alloy and secured with concealed fasteners, or by heavy duty 4 bar concealed friction hinges. Roto type operation with locking handles and concealed strikes shall be standard with exposed hinges. Other variations of hardware and finish available.

PIVOT HARDWARE

Pivot vents shall rotate 180 degrees on cast white bronze pivots. Locking hardware shall consist of a project out handle on one side and a project in handle on the other side. Removable key custodial locks and limit devices are available options.

WEATHERSTRIPPING

A compression seal shall run continuously around entire perimeter of ventilator and frame opening of ventilator to form a double seal.

GLAZING

Marlin series #7505 windows shall accept glazing materials with nominal thickness of 1/4" & 1".

OPTIONAL SCREEN

Screen frames shall be fabricated from roll-form aluminum finish to match window. Screen cloth to be 18 x 16 fiberglass mesh held in the aluminum screen frame with a tight fitting continuous vinyl spline

INSTALLATION

Windows shall be installed straight, plumb, and level without twisting and securely anchored in place. Openings shall be properly prepared to provide sufficient space at jambs, head and sill to compensate for normal construction movement without affecting intended use.

PROTECTION AND CLEANING

The General Contractor shall provide adequate protection of the aluminum and glass surface from damage by grinding compound, lime, acids, cement or other contaminants. The General Contractor shall be responsible for final cleaning.
