System 60 Curtain Wall - 2 1/2" x 5 3/4", 7 3/8" or 10" Thermal Framing

Download Details

.pdf

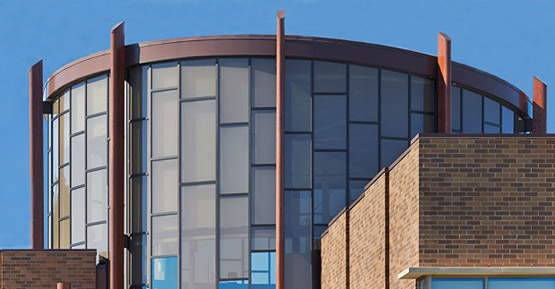

Marlin System 60 curtain wall combines the high performance of pressure wall design with high span capabilities. By utilizing a PVC thermal separator to eliminate direct contact between interior and exterior aluminum sections, excellent thermal performance is also achieved.

System 60 framing members are 2 1/2" wide with an overall frame depth of 5 3/4", 7 3/8", or 10". Steel reinforcing is available to fit into the rectangular mullion when extra strength is required. Horizontal members are attached to the vertical with shear anchor clips.

Glass to the front design accepts 1" glazing with provisions for 1/4" by use of an adaptor. Glass is held firmly in place by screw applied pressure plates. Snap on cover plates leave a clean exterior appearance.

System 60 offers optional components to accommodate entrance doors, vestibule framing and interior partitions and various exterior caps.

Thermal Performance
Glass	Airspace	U-Factor	SHGC	VT
1/4 Clear + 1/4 SB60 #2 [Argon]	1/2"	0.35	0.35	0.64
1/4 Cardinal i89 + 1/4 SB60 #2 [Argon]	1/2"	0.31	0.35	0.62
1/4 Clear + 1/4 SB70 #2	1/2"	0.34	0.25	0.58
1/4 Cardinal i89 #4 + 1/4 SB70XL #2 [Argon]	1/2"	0.30	0.25	0.56

ANSI/NFRC 100, Procedure for Determining Fenestration Product U-Factors (2014)

ANSI/NFRC 200, Procedure for Determining Fenestration Product Solar Heat Gain Coefficients at Normal Incidence (2014)

NFRC 500, Prodecure for Determining Fenestration Product Condensation Resistance Values (2014)

Specifications

GENERAL

U-Factors are determined in accordance with NFRC 100. Glass properties are based on center of glass values and are obtained from PPG Architectural Glass Overall U-Factor are based on the standard NFRC specimen. Aluminum framing shall be Marlin System 60 thermally improved as manufactured by Marlin Windows.

MATERIALS

All framing shall be aluminum extrusions of 6063-T5 alloy & temper with a minimum wall thickness of .094". System 60 shall have a PVC thermal separator to eliminate contact between the interior and exterior aluminum sections. Glazing gaskets shall be extruded E.P.D.M. System shall accommodate vertical structural silicone butt glazing.

FINISH

Standard architectural Class II anodic color conforming to Aluminum Association AA-M12-C22-A34 for dark bronze or AA-M12-C22-A31 for clear anodize. (Architectural Class I and Class II anodic finishes and organic coatings available).

CONSTRUCTION

Aluminum framing shall have a 2 1/2" face width and a depth of 5 3/4, 7 3/8" or 10" and provide for flush glazing without projected stops. Optional low profile vent (Architect to specify) Maximum vent 60" x 36".

SEISMIC

System shall be tested to withstand seismic racking without loss of integrity.

PERFORMANCE

System 60 shall be tested in accordance with AAMA 501 and meet the requirements of ASTM E 331 for water penetration, and ASTM E 330 for structural performance. Deflection of mullions shall be limited to L/175 when subjected to the project design pressure of ____ P.S.F. (Architect to specify).

System 60 NFRC Simulation test in accordance with ANSI/NFRC 100, Procedure for Determining Fenestration Product U-Factors (2014), ANSI/NFRC 200, Procedure for Determining Fenestration Product Solar Heat Gain Coefficients at Normal Incidence (2014), NFRC 500, Prodecure for Determining Fenestration Product Condensation Resistance Values (2014)

GLAZING

Marlin system 60 shall accommodate 1" glazing as required. Provisions for 1/4" glazing shall be accommodated by use of an adapter.

OPTIONS

Incorporating standard Marlin project-out windows and all glass structural glazed vents.

Various beauty cap depths and profiles.

Fiber glass pressure plate in lieu of aluminum.

Steel reinforcing

Standard and custom sunshades.

INSTALLATION

Experienced workman in accordance with approved shop drawings shall install System 60. Glass and framing shall be installed straight, plumb, and level without twisting and securely anchored in place. All joints between framing and the building exterior shall be sealed to provide a watertight installation.

PROTECTION AND CLEANING

The General Contractor shall provide adequate protection of the aluminum and glass surface from damage by grinding compound, lime, acids, cement or other contaminants. The General Contractor shall be responsible for final cleaning.

� 2013 by Marlin Windows, Inc
