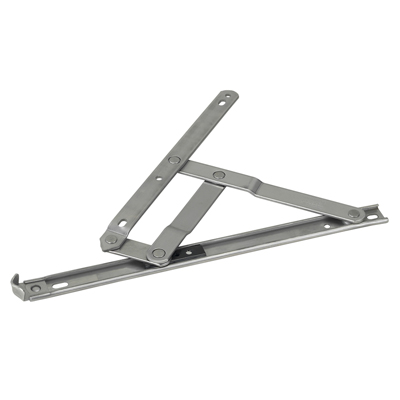

4 BAR CONCEALED HINGE

Standard for casement and projected windows. Friction adjustment holds windows open at any position

BUTT HINGE

Cast bronze alloy exposed hinge is standard with roto operators or push out hardware.

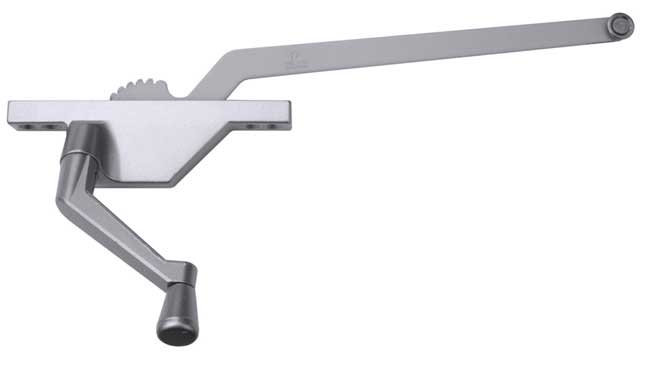

ROTO OPERATOR

For projected-out vent. Mounted at vent bottom, It allows for approximately 8" opening.

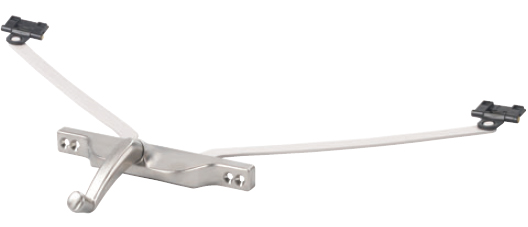

ROTO OPERATOR

For casement windows opening up to 90 degrees. Used with butt hinge or 4-bar concealed hinge, friction arm and roto latch.

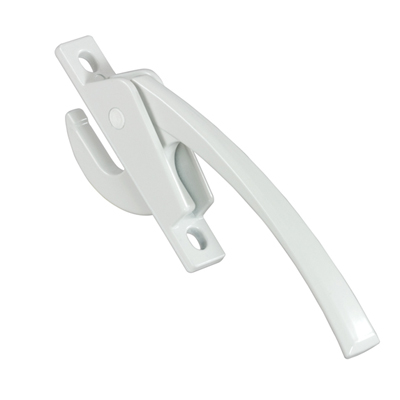

PROJECT-OUT HANDLE

Bronzecraft standard push/pull & locking handle for casement and project-out windows.

PROJECT-IN HANDLE

Bronzecraft push/pull locking handle for operation of in-swing (hopper) vents.

RotoOTO LATCH

Lock handle for roto operated windows.

2 POINT LOCK

(Available on 7505 Only)

2 point locking handle for roto operated casements.

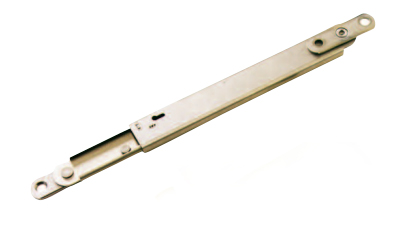

FRICTION ARM

Adjustable friction setting adds stability to top of roto operated vent

OPERATOR POLE

For operation of project-in handle available in lengths up to 12'

CUSTODIAL LOCK

Allows for control of vent operation. Requires special key to lock or unlock

LIMIT DEVICE

Allows for limited opening of vent. Degrees of opening vary between 5 to 20

UNDERSCREEN PUSH BAR

For project-out vent. Mounted at vent bottom, it allows for approximately 8" opening
